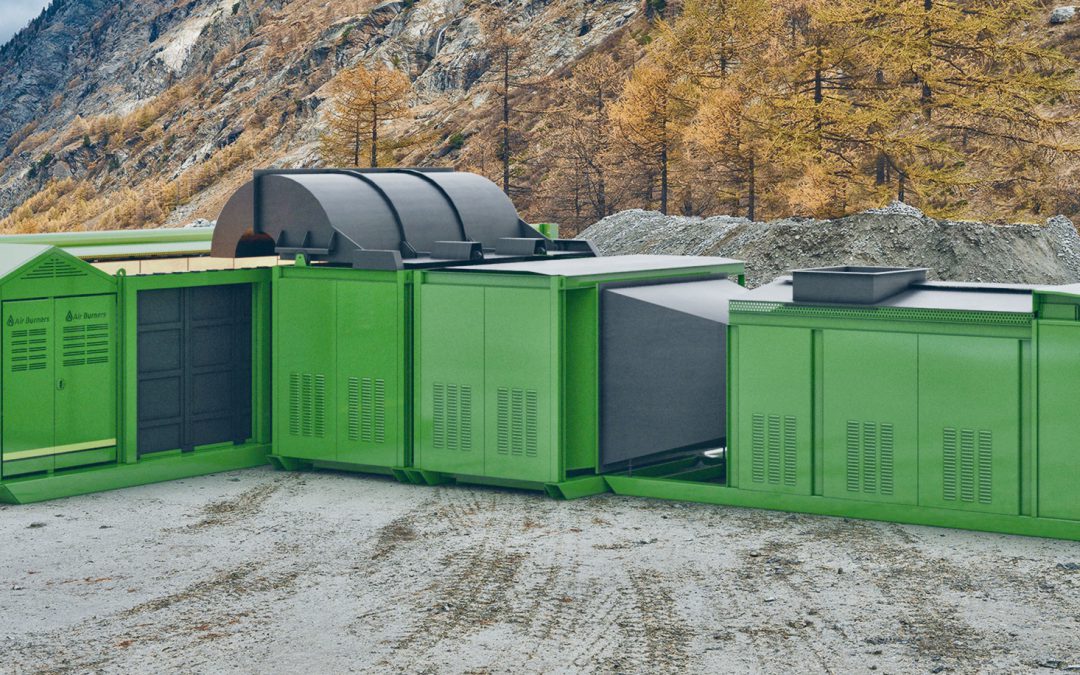

Air Burners’ PGF-500 is a revolutionary new method for eliminating wood and other vegetative waste, as well as clean construction debris. At the core of the system is Air Burners’ patented FireBox technology which has been tested and approved by regulatory agencies around the globe. The PG FireBox can eliminate up to 10 tons per hour [9.1 mt/h] of waste material while simultaneously producing up to 500 kW of clean, emission-free energy without the use of supplemental fossil fuels.
In addition, the PG FireBox does not require any of the costly and emissions-intensive pre-processing (grinding/chipping/sorting) of fuel required by conventional biomass power generating systems. The PG FireBox consumes whole logs, limited only by the length of the FireBox in the system (generally 20 ft [6 m] or more). The volume of the waste material is reduced by approximately 98%, leaving only a small quantity of ash and biochar that can be repurposed for agricultural or other uses.
A portion of the ‘waste’ heat in the exhaust from the FireBox is captured and directed to a heat exchanger to produce hot water (300° F [150° C] or less), which in turn supplies an Organic Rankine Cycle (ORC) power generating unit. The ORC utilizes an organic working fluid in a ‘reverse refrigeration process’ where the thermal energy input to the system is converted mechanical, and ultimately electrical energy by driving an asynchronous (induction) generator. The system is connected to the local electrical grid in accordance with local regulations where either some or all of the energy is consumed on site and any excess energy produced is sold back to the utility.
Aside from the electrical grid connection, only a cooling source for the ORC is required at the site. This can be either air-cooling or water cooling. In the case of water cooling no water is consumed or contaminated.
Interested in this air burner?
Specifications for Power Generation Module
Specifications for Firebox Module
Specifications for AIR BURNERS AIR BLAST COOLER FOR CONDENSING WATER
8,100 lbs [3680 kg]
